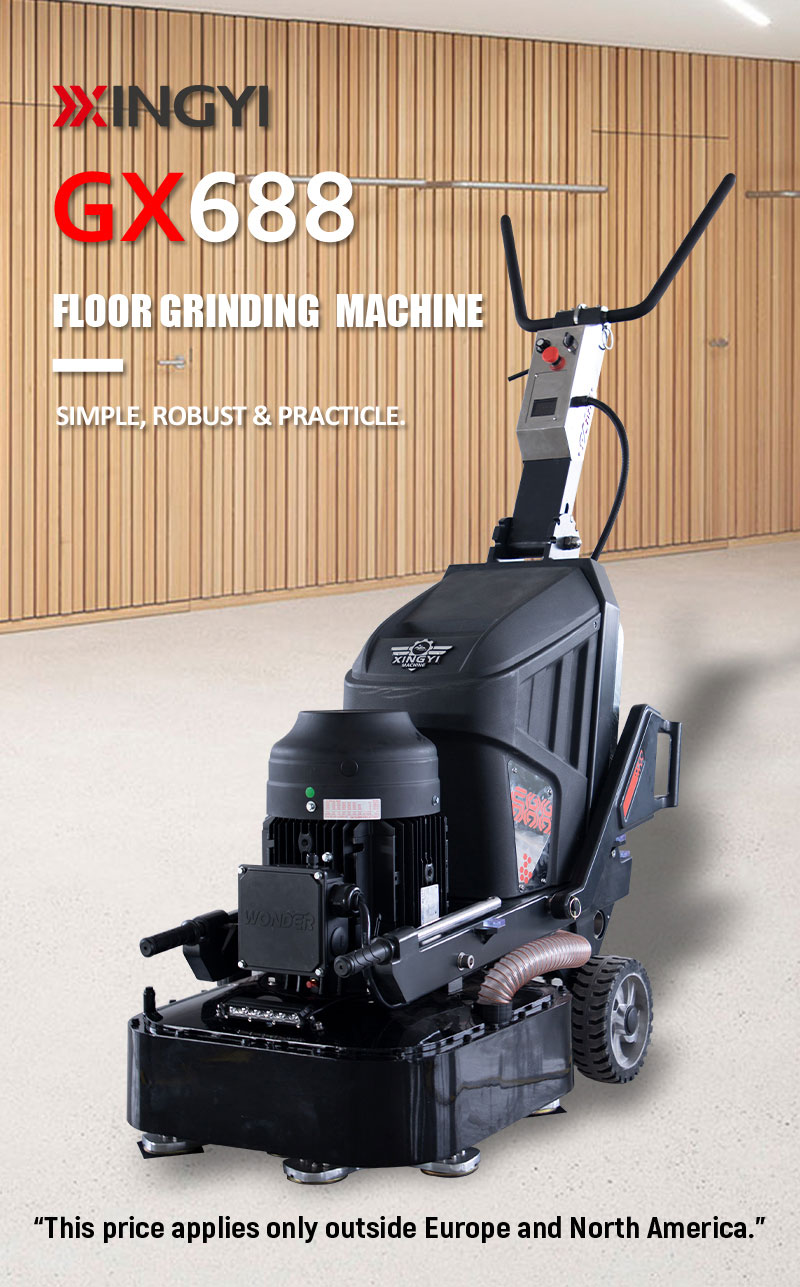

GX 688
5 gears GRINDING MACHINE
The GX688 grinder is the first one in the world; Xingyi exclusive technology;

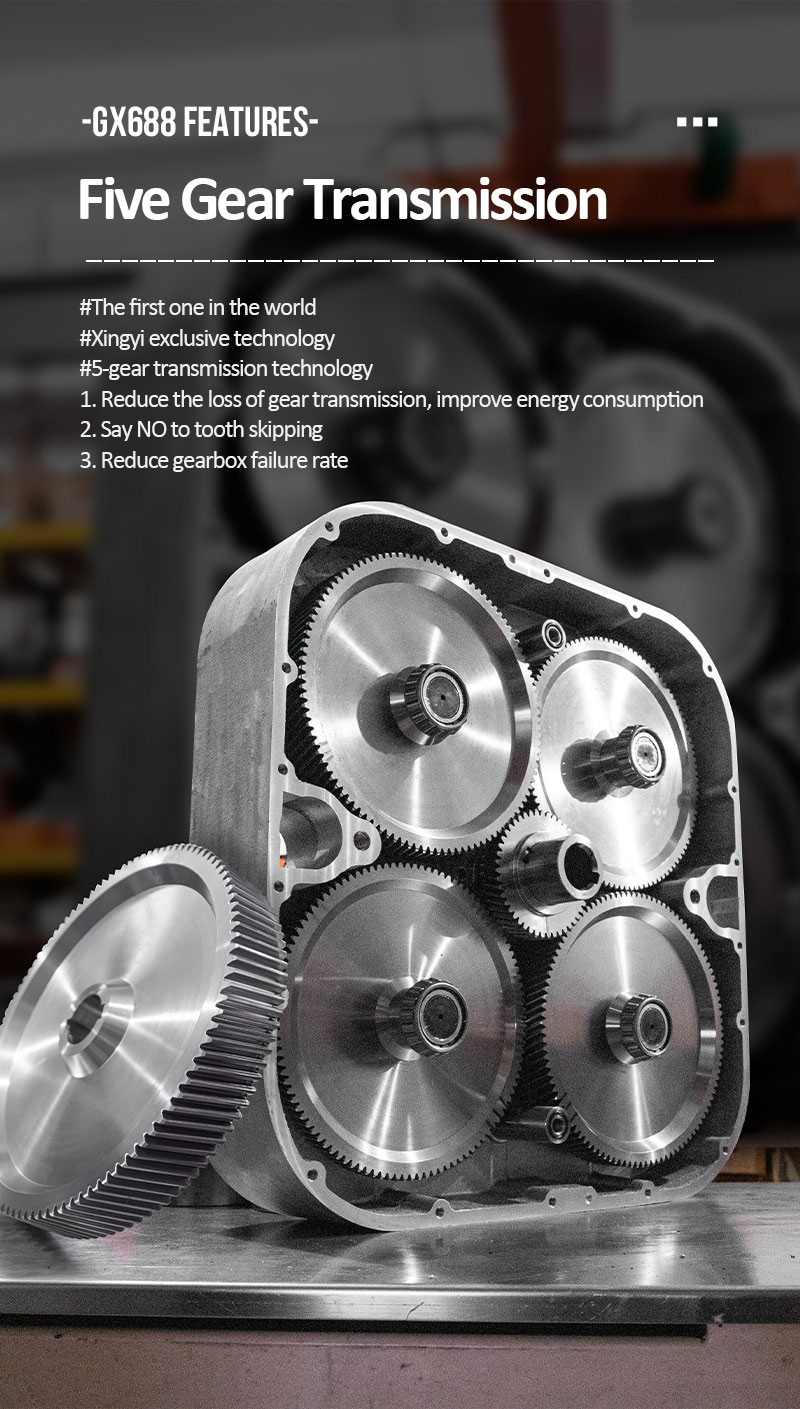

5-gears transmission technology reduces the loss of gear transmission and energy consumption by 5% to 8%. The 5-gears transmission technology realizes no intermediate transition gears and eliminates the phenomenon of "tooth skipping".
The 5-gears transmission technology reduces gearbox failure rate by more than 60%.
The unit weight of the gearbox is up to 310Kg, the first grinding pressure, 330Kg; the efficiency of the GX688 grinder is 20% higher than that of other 15KW grinder of XINGYI.
|

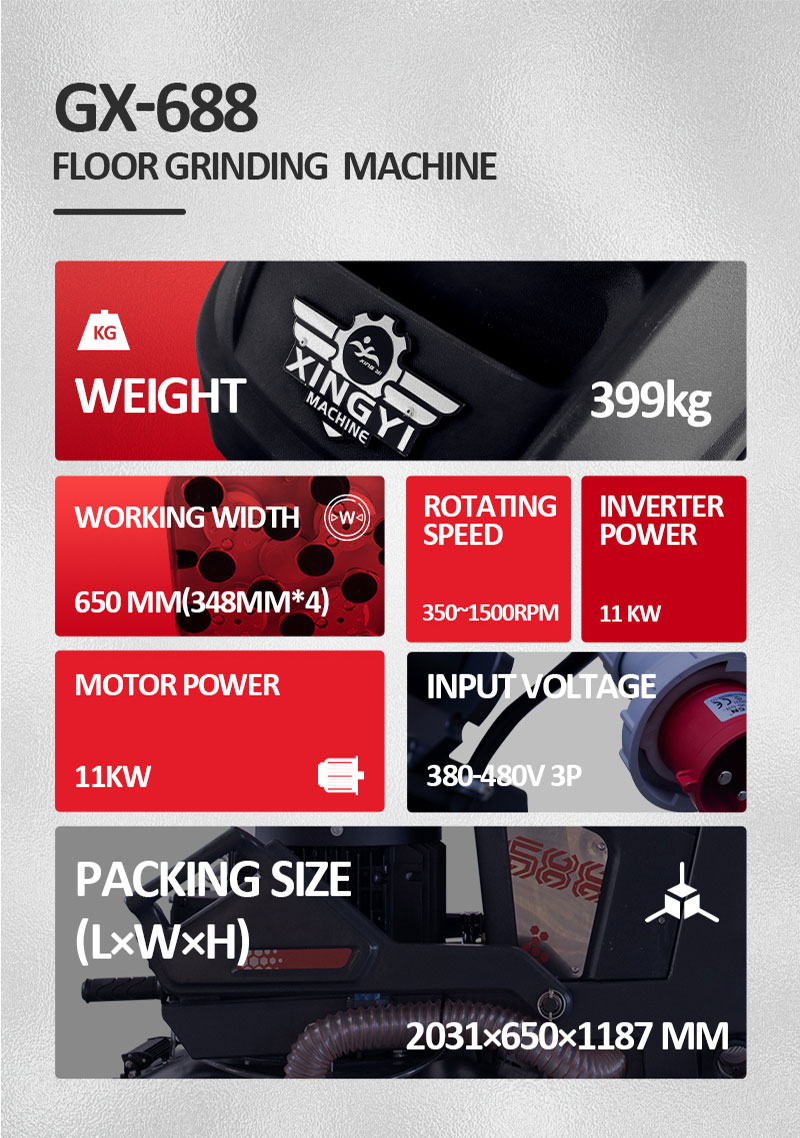

Product |
GX 688 |
|
Working Width: |
650mm |
|
Motor Power: |
11kw /15kw |
|
Voltage: |
380-480V 3P/200-240V 3P/ 200-240V 1P |
|
Frequency: |
50/60hz |
|
Rotating Speed: |
350 - 1680rpm/ 350 - 1500rpm |
|
Grinding Disc: |
348mm*4 |
|
Mode of Operation: |
GX688 Walk-behind/ GX688-A Self-propelled |
|
Water Tank: |
30L |
|
Weight: |
399kg/410kg |
|
Appearance Size： |
2031*650*1187mm |
