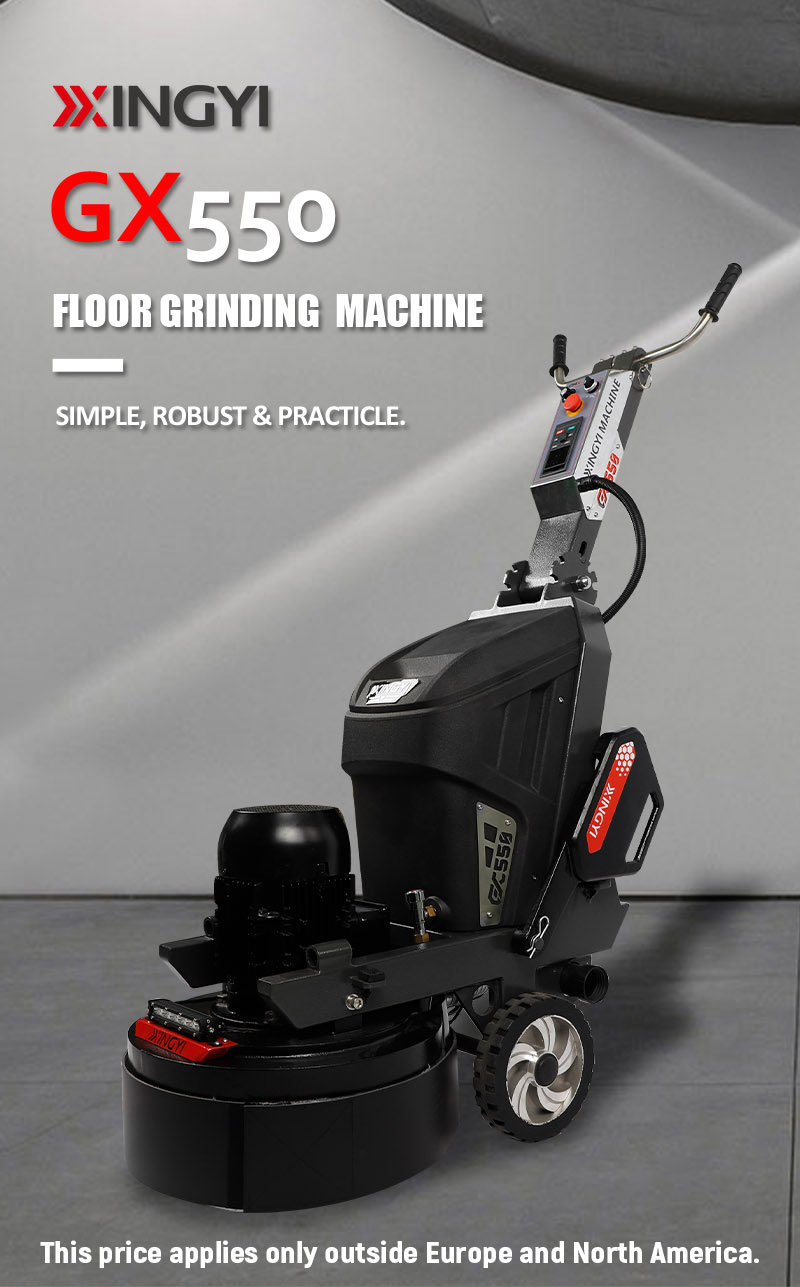

GX 550
Planetary GRINDING MACHINE

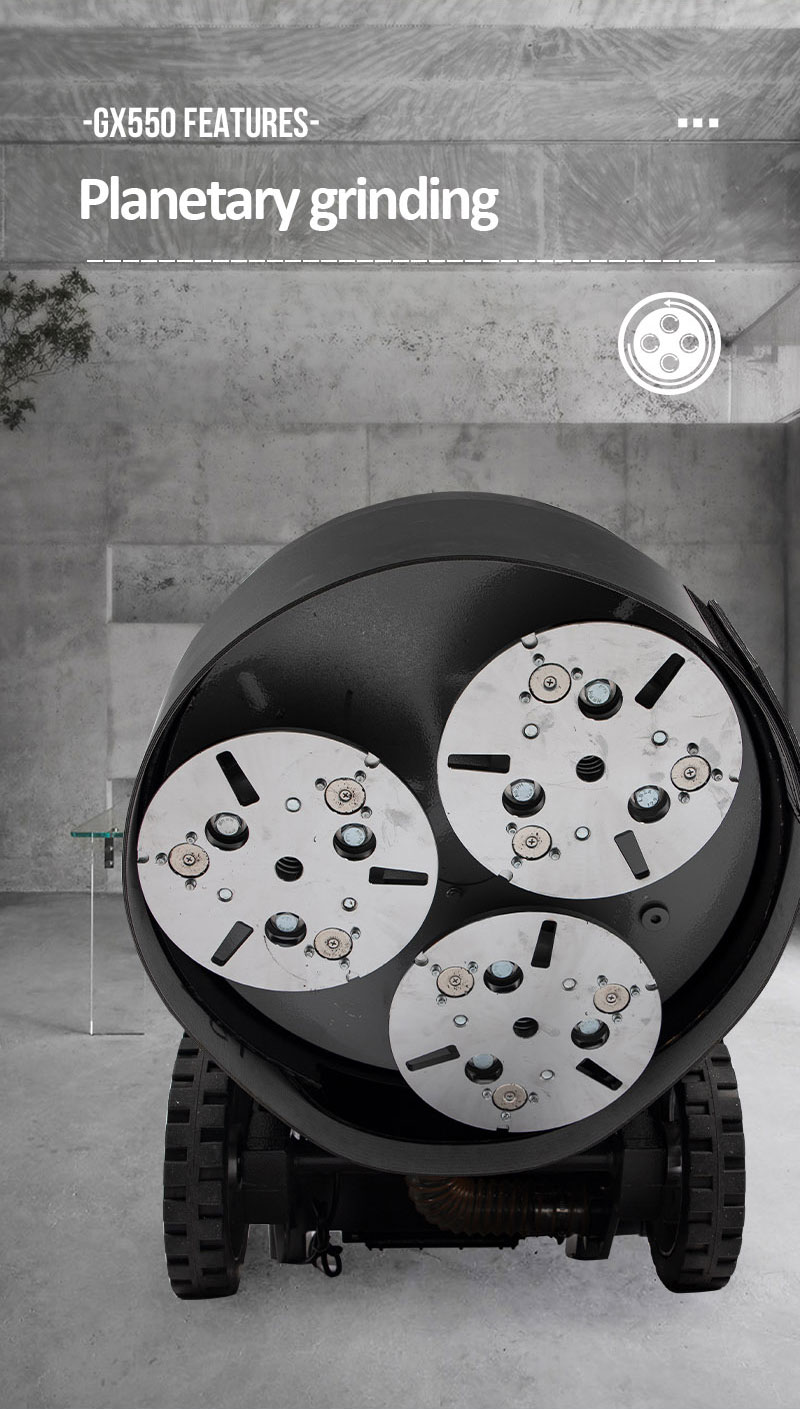

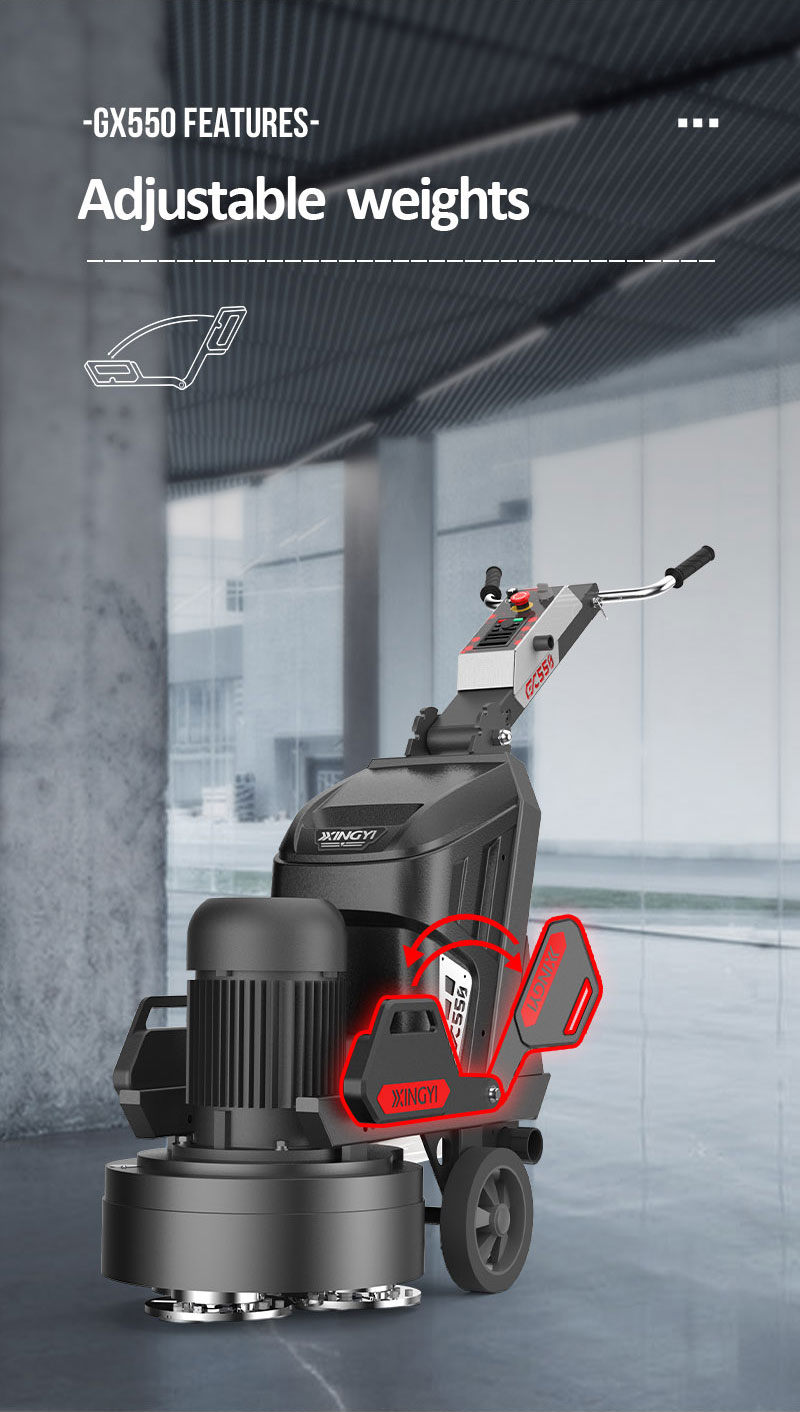

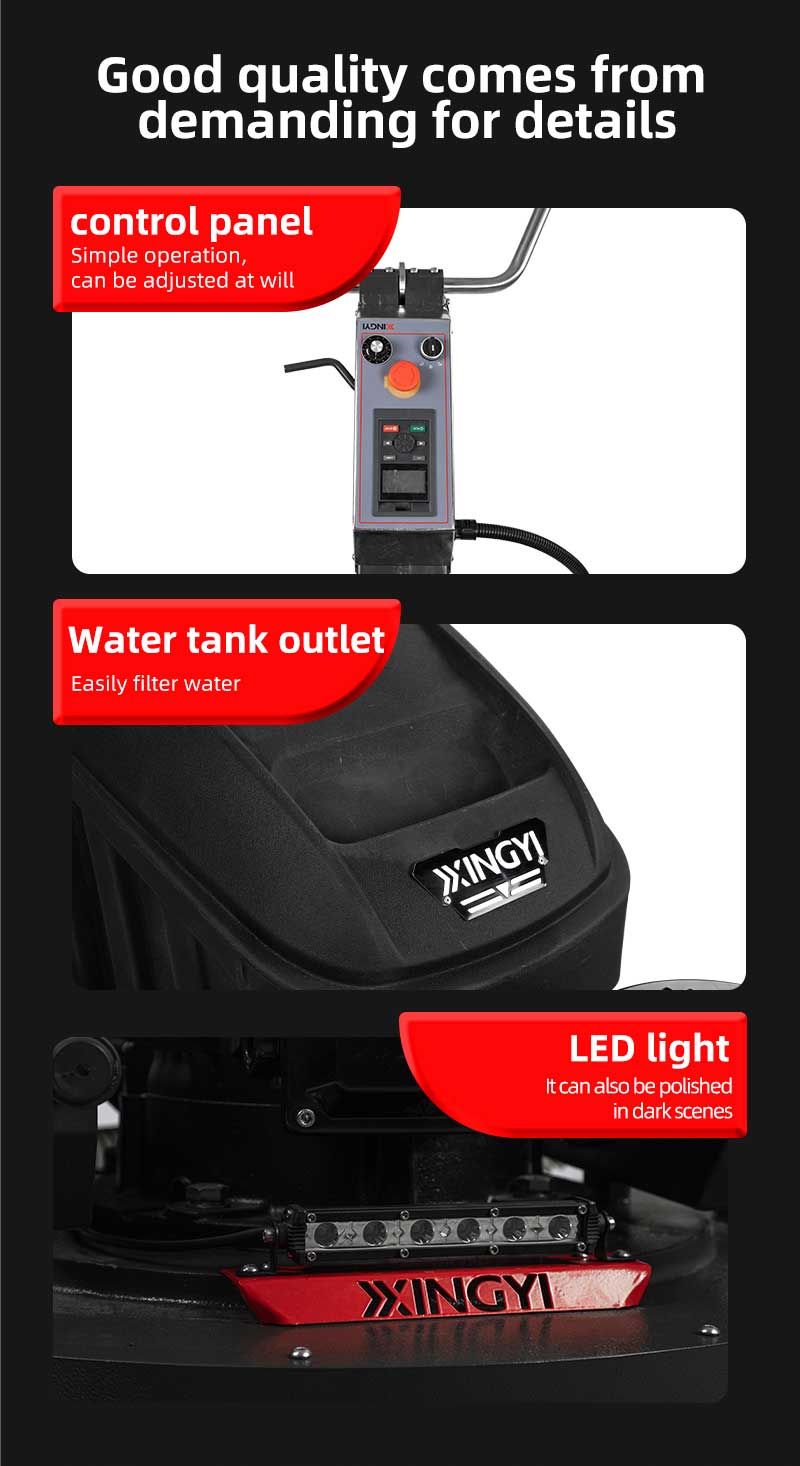

Same with other GX series machine, promoted from old Q/X series of XINGYI sold in the market for 16 years. Thanks to XINGYI dual Alloy gearbox casting technology, the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine.

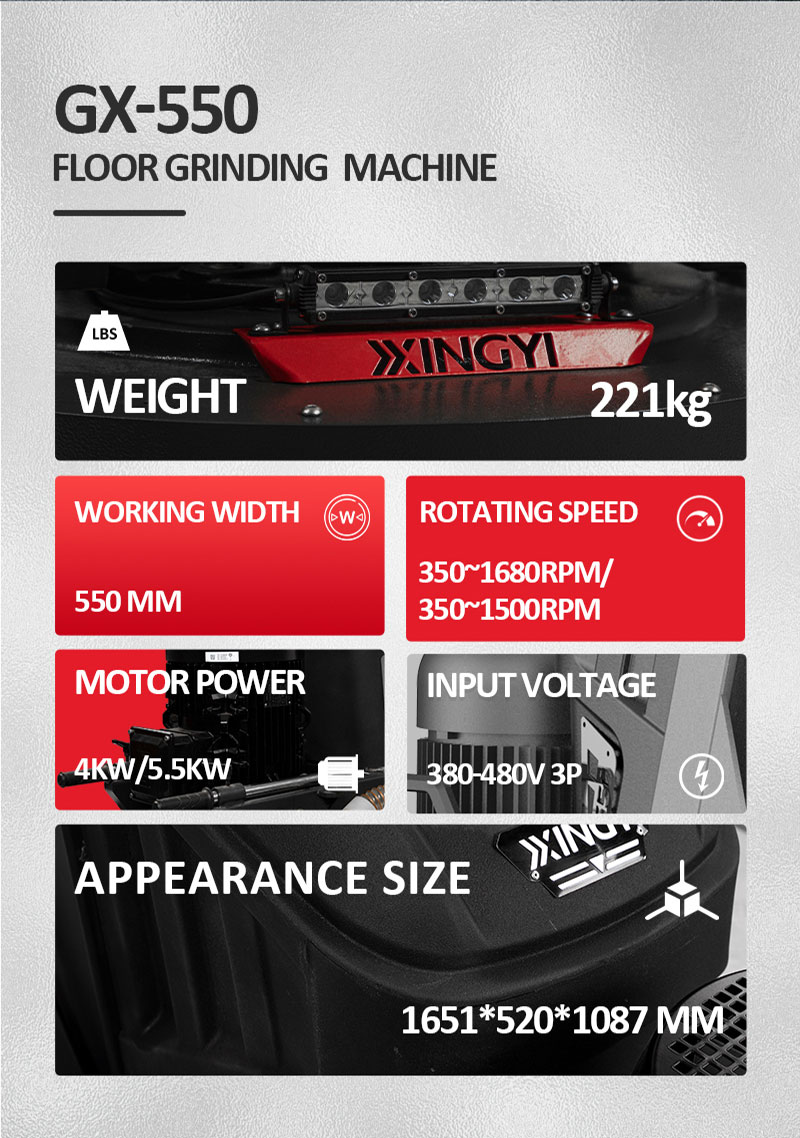

| Product |
GX 550 |
|
Working Width: |
550mm |
|
Motor Power: |
4kw /5.5kw |
|
Voltage: |
380-480V 3P/200-240V 3P/ 200-240V 1P |
|
Frequency: |
50/60hz |
|
Rotating Speed: |
350 - 1680rpm/ 350 - 1500rpm |
|
Grinding Disc: |
230mm*3 |
|
Mode of Operation: |
Walk-behind |
|
Water Tank: |
25L |
|
Weight: |
221kg/230kg |
|
Appearance Size： |
1651*520*1087mm |
